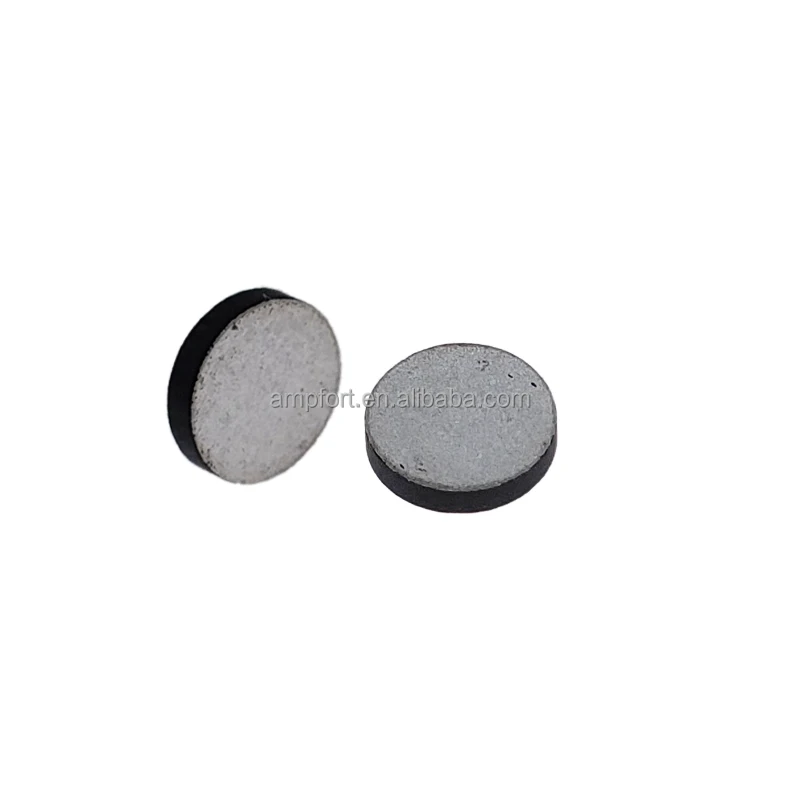

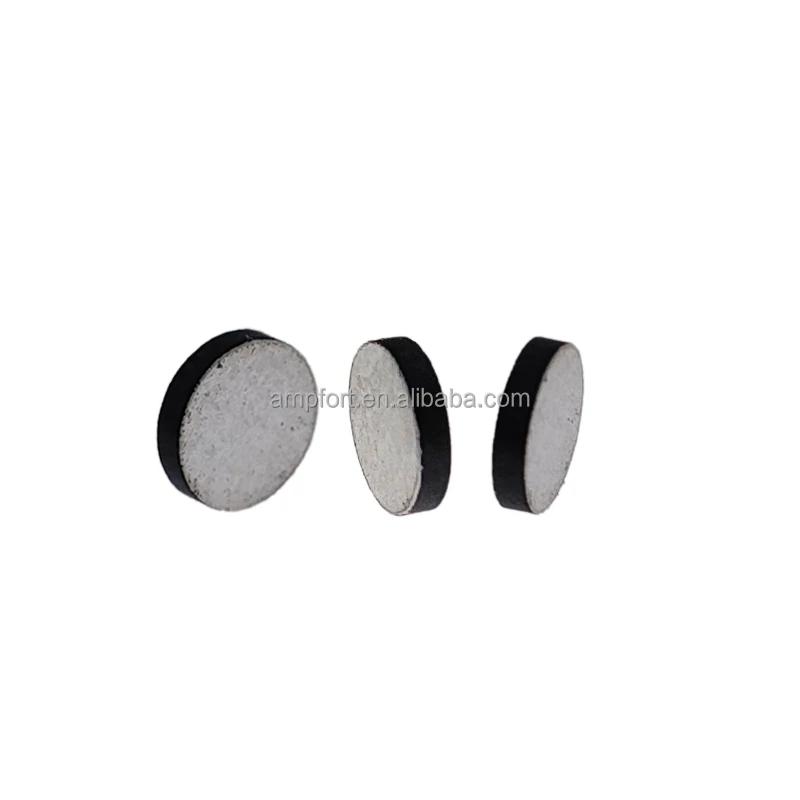

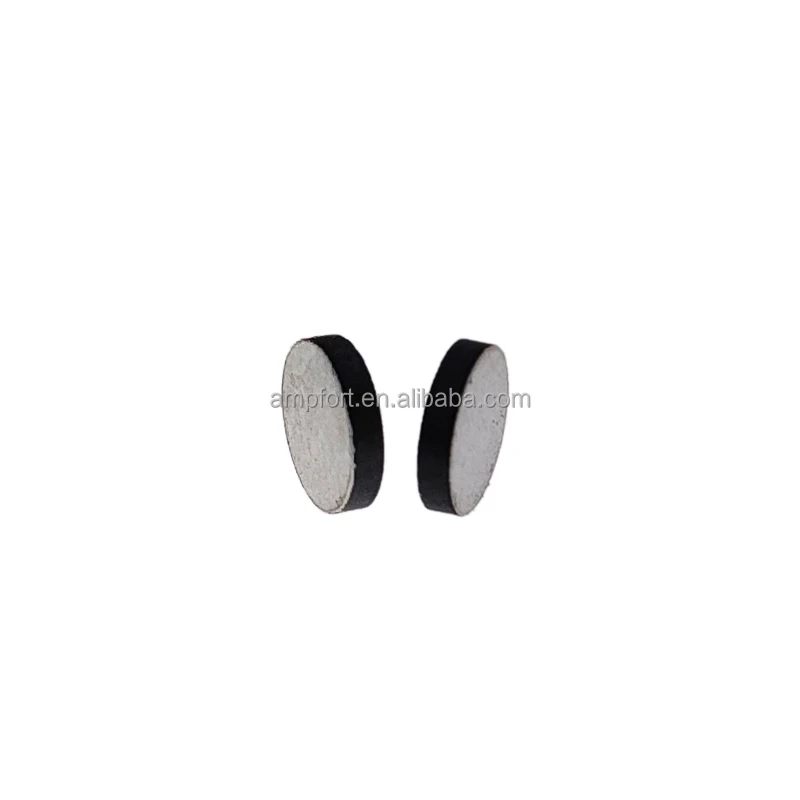

Clamp On Leadless Coin NTC Thermistors For Car Oil And Water Transmission Temperature Measurement
Analog temperature sensor (NTC type) with recommended range of up to +125°C. Example of use: oil temperature, transmission temperature and water temperature.
- Temperature measurement and compensation
- Internal combustion locomotive
- large motor
- oil soaking transformer
- oil temperature, transmission temperature and water temperature.

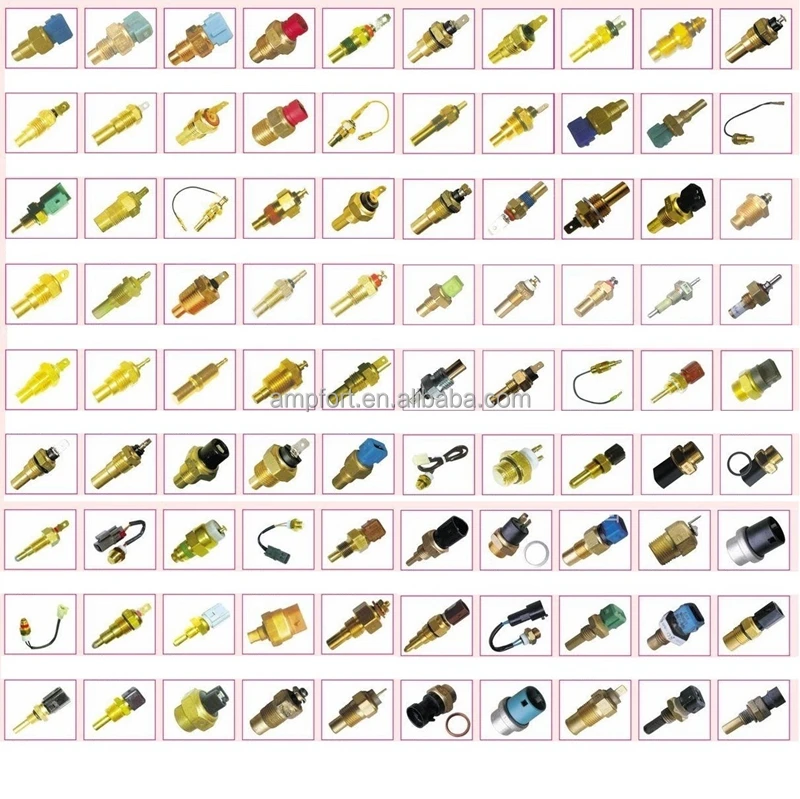

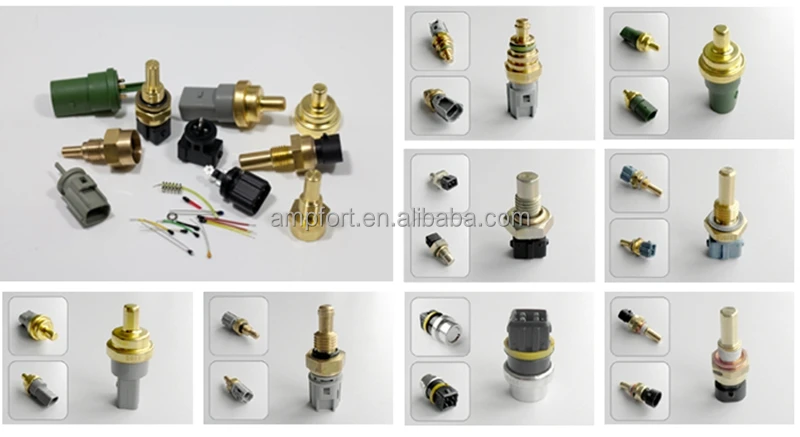

This type of sensor is commonly used as oil temperature sensor (for engine oil or transmission oil temperature measurements) and as water temperature (for engine coolant temperature measurements)
- Front surfaces silver-plated
- For clamp contacting
- Alternative resistance ratings, rated temperatures, resistance tolerances and disk geometries available on request.
- The nominal resistance value and B value error range are small, the product consistency and interchangeability are good, which can be supported by various domestic and imported car instruments.

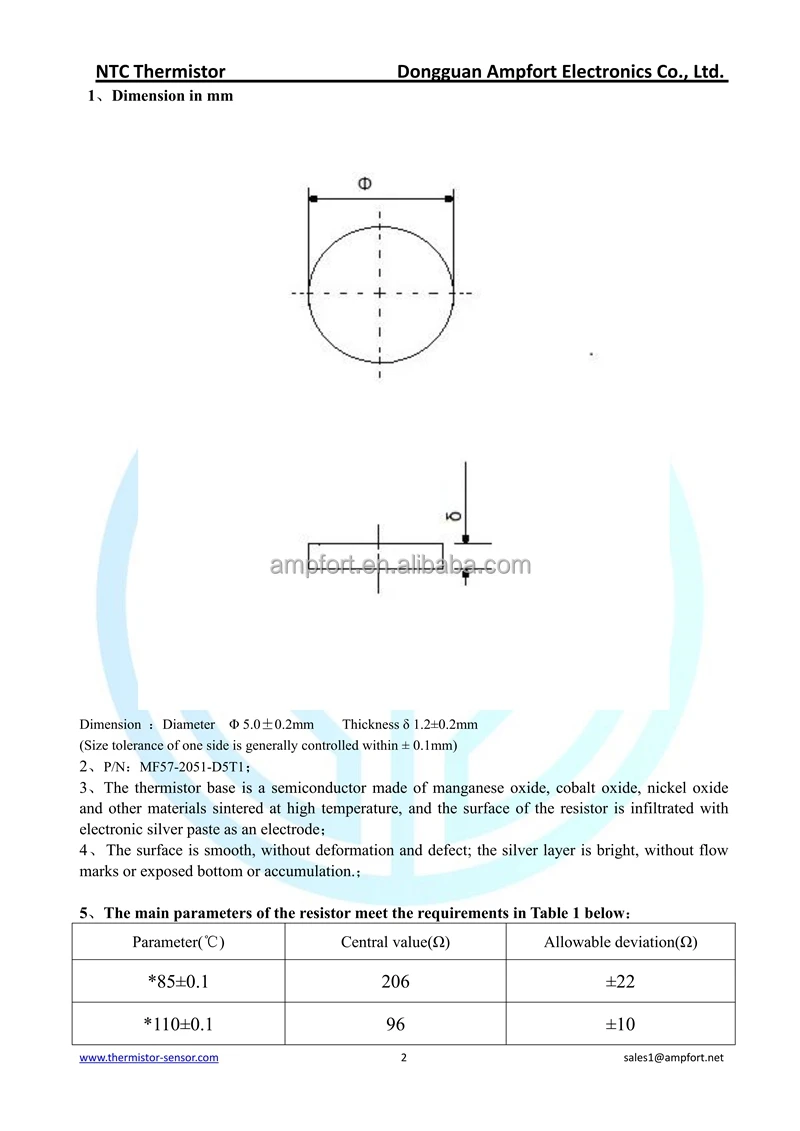

1.Dimension
1.1,The thermistor base is a semiconductor made of manganese oxide, cobalt oxide, nickel oxide and other materials sintered at high temperature, and the surface of the resistor is infiltrated with electronic silver paste as an electrode;
1.2,The surface is smooth, without deformation and defect; the silver layer is bright, without flow marks or exposed bottom or accumulation
2. The main parameters of the resistor meet the requirements in Table 1 below
| Temperature(℃) | Resistance(Ω) | Allowable deviation(Ω) |
| *85±0.1 | 206 | ±22 |
| *110±0.1 | 96 | ±10 |

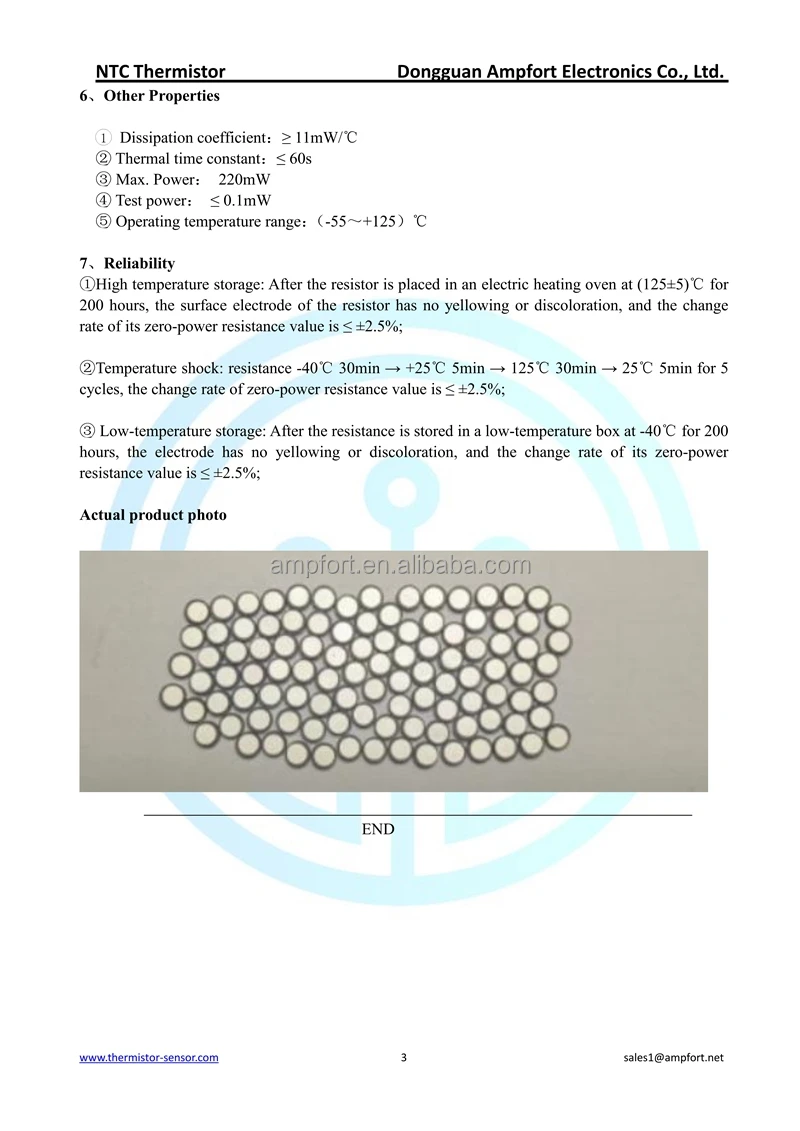

2.1 Dissipation coefficient:≥ 11mW/℃
2.2 Thermal time constant:≤ 60s
2.3 Max. Power: 220mW
2.4 Test power: ≤ 0.1mW
2.5 Operating temperature range:(-55~+125)℃
3.Reliability
3.1 High temperature storage: After the resistor is placed in an electric heating oven at (150±5)℃ for 200 hours, the surface electrode of the resistor has no yellowing or discoloration, and the change rate of its zero-power resistance value is ≤ ±2.5%;
3.2 Temperature shock: resistance -40℃ 30min → +25℃ 5min → 150℃ 30min → 25℃ 5min for 5 cycles, the change rate of zero-power resistance value is ≤ ±2.5%;
3.3 Low-temperature storage: After the resistance is stored in a low-temperature box at -40℃ for 200 hours, the electrode has no yellowing or discoloration, and the change rate of its zero-power resistance value is ≤ ±2.5%;
4.Common car temperature sensor standard numerical reference list
4.1 GM Buick Excelle Car
| C | F | Engine coolant temperature sensor | Inlet temperature sensor |
| OHM |
| Temperature Resistance (approximation) |
| 100 | 212 | 177 | 187 |
| 90 | 194 | 241 | 246 |
| 80 | 176 | 332 | 327 |
| 70 | 158 | 467 | 441 |
| 60 | 140 | 667 | 603 |
| 50 | 122 | 973 | 837 |
| 45 | 113 | 1188 | 991 |
| 40 | 104 | 1459 | 1180 |
| 35 | 95 | 1802 | 1412 |
| 30 | 86 | 2238 | 1700 |
| 25 | 77 | 2796 | 2055 |
| 20 | 68 | 3520 | 2500 |
| 15 | 59 | 4450 | 3055 |
| 10 | 50 | 5670 | 3760 |
| 5 | 41 | 7280 | 4651 |
| 0 | 32 | 9420 | 5800 |
| -5 | 23 | 12300 | 7273 |
| -10 | 14 | 16180 | 9200 |
| -15 | 5 | 21450 | 9200 |
| -20 | -4 | 28680 | 15080 |
| -30 | -22 | 52700 | 25600 |
| -40 | -40 | 100700 | 45300 |
4.2Chery QQ
| Temperature(C) | Standard Value(ohm) |
| 50 | 740~900 |
| 60 | 540~650 |
| 70 | 390~480 |
| 80 | 290~360 |
| 90 | 210~270 |
| 100 | 160~200 |
4.3 CHERY Cowin
| Temperature(C) | Standard Value(ohm) |
| 20~30 | 3560~2260 |
| 90~100 | 120~180 |
4.4 Chery Eastar
| Temperature(C) | Standard Value(ohm) |
| 20 | 2.1~2.7 |
| 80 | 0.26~0.36 |
4.5 Chery Fulwin
| Temperature(C) | Standard Value(ohm) |
| 0 | 9.4 |
| 20 | 3.51 |
| 40 | 1.456 |
| 60 | 0.67 |
| 80 | 0.334 |
| 100 | 0.178 |
4.6 Dongfeng Nissan Sunny
| Temperature(C) | Standard Value(ohm) |
| 20 | 2.1~2.9 |
| 50 | 0.68~1.00 |
| 90 | 0.24~0.26 |
4.7 Dongfeng Peugeot Citroen
| Temperature(C) | Standard Value(ohm) |
| 10 | 3530~4100 |
| 20 | 2350~2670 |
| 40 | 1085~1230 |
| 60 | 540~615 |
| 80 | 292~326 |
| 100 | 165~190 |
4.8 Guangzhou Honda Accord (2.0L/2.3L)
| Temperature(C) | Standard Value(ohm) |
| Engine up to normal operate temperature | 200~400 |
4.9 Mazda M6
| Temperature(C) | Standard Value(ohm) |
| 20 | 35.48~39.20 |
| 70 | 5.07~5.60 |
| 80 | 3.65~4.02 |
4.10 Fia Terio and Siena
| Temperature(C) | Standard Value(ohm) |
| -20 | 15.97 |
| 0 | 5.975 |
| 20 | 2.5 |
| 40 | 1.15 |
| 60 | 0.576 |
| 80 | 0.309 |
| 100 | 0.176 |
4.11 Beijing Hyundai Sonata
| Coolant Temperature(C) | Standard Value(Kohm) |
| 0 | 5.9 |
| 20 | 2.5 |
| 40 | 1.1 |
| 80 | 0.3 |
4.12 Beijing Hyundai Elantra
| Temperature(C) | Standard Value(v) |
| 0 | 3.7~4.3 |
| 20 | 3.2~3.6 |
| 40 | 2.4~3 |
| 80 | 1.0~1.5 |
4.13 KIA MAXIMA
| Temperature(C) | Standard Value(ohm) |
| -30 | 22.22~31.78 |
| -10 | 8.16~10.74 |
| 0 | 5.18~6.60 |
| 20 | 2.27~2.73 |
| 40 | 1.059~1.081 |
| 60 | 0.538~0.650 |
| 80 | 0.298~0.322 |
| 90 | 0.219~0.243 |
4.14 Volkswagen Passat car series (1.8T, 1.8L)
4.15 Hong Qi Red Flag Century Star
| Coolant Temperature(C) | Standard Value(Kohm) |
| 20 | 2.5 |
| 80 | 0.3 |
4.16 Nissan Teana (VQ35DE/VQ23DE)
| Temperature(C) | Standard Value(ohm) |
| 20 | 2.1~2.9 |
| 50 | 0.68~1.00 |
| 90 | 0.236~0.26 |
4.17 Nissan Fuga
| Temperature C(F) | Standard Value(Kohm) |
| 20(68) | 2.1~2.9 |
| 50(122) | 0.68~1.00 |
| 90(194) | 0.236~0.260 |
4.18 Toyota Crown
| Temperature(C) | Standard Value(Kohm) |
| -20 | 10~20 |
| 0 | 4~7 |
| 20 | 2~3 |
| 40 | 0.9~1.3 |
| 60 | 0.4~0.7 |
| 80 | 0.2~0.4 |
4.19 Toyota Highlander
| Temperature | Standard Value(Kohm) |
| 20C(68F) | 2.32~2.59 |
| 80C(176F) | 0.310~0.326 |
4.20 BMW car series (M30B35)
| Temperature(C) | Standard Value(Kohm) |
| 10 | 8.2~10.5 |
| 17~23 | 2.3~2.7 |
| 77~83 | 0.3~0.36 |
