498 ANS150 Zinc Copper 125C Auto Blade Fuses Midi Bolt Down Fuse UL 248

Brand Name : AMPFORT

Model Number : ANS-150

Certification : UL / UR / ROHS

Place of Origin : Dongguan,Guangdong,China

MOQ : 500 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 15,000,000 Pieces Per Month

Delivery Time : 3-5 Workdays

Packaging Details : Bulk

Product Name : MIDI Bolt-down Auto Blade Fuses 150A 32V

Ampere range : 30A-150A

Voltage : 32VDC / 60V / 80VDC

Material : Zinc Copper Tin, PA

Certificates : UL / UR / ROHS

Interrupting Rating : 2000A @ 32 VDC

Operating Temperature : -40˚C to + 125˚C

Complies with : Standard UL 248-

Equivalent Brand and Series : Bussmann AMI, Littelfuse 498

Speed : Time Delay

Contact Now

498 High Current MIDI Bolt-down Auto Blade Fuses 150A 32V For ANS-H Fuse Holder

Description Of The 498 High Current MIDI Bolt-down Auto Blade Fuses 150A 32V

This MIDI style fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics. We can offer original littelfuse 498 bolt down fuse and ANC midi auto fuse produced by us, their function and size is almost same just different brand and manufacturer.

498 ANS150 Zinc Copper 125C Auto Blade Fuses Midi Bolt Down Fuse UL 248

Features Of The 498 High Current MIDI Bolt-down Auto Blade Fuses 150A 32V

Interrupting Rating: 2000A @ 32 VDC
Voltage Rating: 32 VDC
Operating Temperature Range: -40˚C to + 125˚C
Black Housing Material: PA66-GF25 (U.L. 94 Flammability rating – V0)
Clear Housing Material: PA6/66 (U.L. 94 Flammability rating – HB)
Terminal: Tin plated Copper
Mounting Torque M5: 4.5 Nm +/- 1Nm
Mounting Torque M6: 6.0 Nm +/- 1Nm
Refers to: ISO 8820-5:2003
Complies with: Standard UL 248-1 as a Special Purpose Fuses in UL file E71611 (40-100A) and Directive 2011/65/EU

Dimension Of The 498 High Current MIDI Bolt-down Auto Blade Fuses 150A 32V (mm)

498 ANS150 Zinc Copper 125C Auto Blade Fuses Midi Bolt Down Fuse UL 248

Specifications Of The 498 High Current MIDI Bolt-down Auto Blade Fuses 150A 32V

ITEM Voltage rating Rating P/N
1 32V 30A ANS-30
2 32V 40A ANS-40
3 32V 50A ANS-50
4 32V 60A ANS-60
5 32V 70A ANS-70
6 32V 80A ANS-80
7 32V 100A ANS-100
8 32V 125A ANS-125
9 32V 150A ANS-150

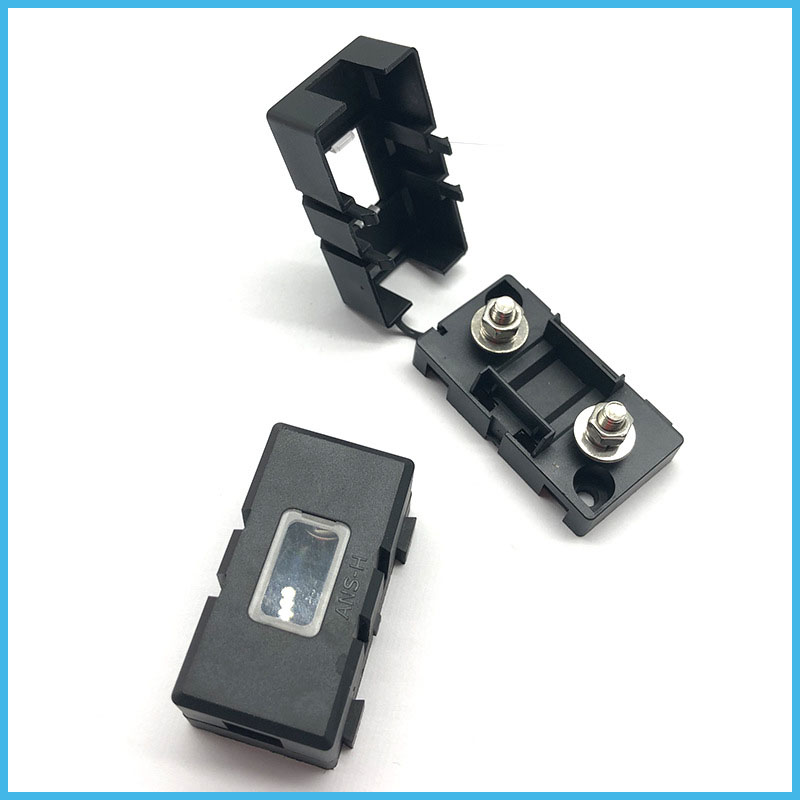

Suitable Fuse Block Of The 498 High Current MIDI Bolt-down Auto Blade Fuses 150A 32V

498 ANS150 Zinc Copper 125C Auto Blade Fuses Midi Bolt Down Fuse UL 248
